Features

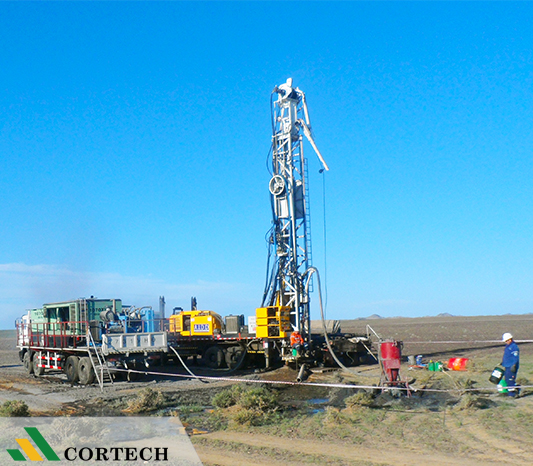

1. This multipurpose exploration drill can be configured to suit different transport applications, such as truck or crawler mounted and jack-up style;
2. Low cost;
3. Low contamination;
4. This multipurpose drill rig is suitable for the most varied drilling conditions.
After-sales Service
Our professional engineer team is globally available, 24/7.
Note
Our rigs are available with different mounting options and diesel or electric drive options. Please contact landy.industry20@gmail.com for more information.
Technical Specifications
|
Drilling Capacity （for reference） |
Core Drilling |
Diameter of Drill Rod |
Drilling Depth |
|
|
BS |
3,000m |
|||
|
NS |
2,400m |
|||
|
HS |
1,600m |
|||
|
PS |
1,100m |
|||
|
Reverse Circulation Drilling |
4” |
400m |
||
|
4.5” |
320m |
|||
|
|
||||
|
Hydraulic System |
Rated Pressure |
29MPa |
||
|
Cooling |
Air Cooled |
|||
|
|
||||
|
Engine |
Model |
6LTAA8.9-C325 |
||
|
Type |
Turbo Charged |
|||
|
Rated Power |
239kW |
|||
|
Rotational Speed |
2,200rpm |
|||
|
|
||||
|
Drill Head |
Max. Torque |
11,400Nm |
||
|
Max. Rotation |
1,180rpm |
|||
|
Feed Stroke |
7,320mm |
|||
|
Head Type |
Top Drive |
|||
|
Max. Pull |
250kN |
|||
|
Max. Push |
110kN |
|||
|
|
||||
|
Main Winch |
Max. Pull/Pulling Speed |
191kN@30m/min |
||
|
90kN@54m/min |
||||
|
Rope Diameter |
26mm |
|||
|
Rope Length |
25m |
|||
|
|
||||
|
Wireline Winch |
Max. Pull/Pulling Speed |
19kN@107m/min（bare drum） |
||
|
5kN@410m/min（full drum） |
||||
|
Rope Diameter |
6.6mm |
|||
|
Rope Length |
2,500m |
|||
|
|
||||
|
Mast |
Length |
13.4m |
||
|
Drilling Angle |
45°-90° |
|||
|
Dump Length |
1,400mm |
|||
|
|
||||
|
Foot Clamp |
Drill Rod |
BS, NS, HS, PS, PW |
||
|
|
||||
|
Clamp Shackle Equipment |
Drill Rod |
3.5”, 4”, 4.5” |
||
|
|
||||
|
Transporting Dimensions |
L×W×H |
13,400×2,500×3,230mm |
||
|
|
||||
|
Total Weight |
24.5t |
|||
