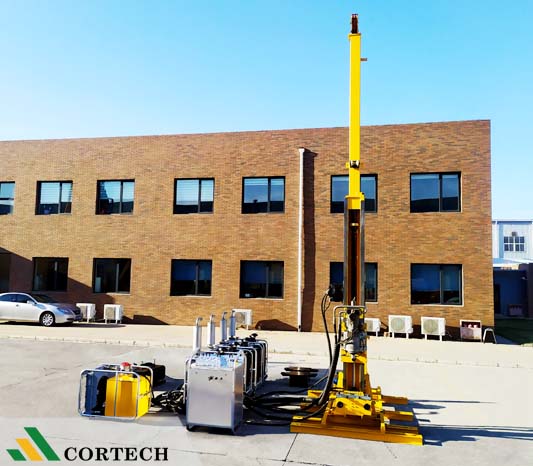

Features
1. Modular design with maximum unit weight not exceeding 230kg.
2. 3+1 Japan original Kubota engines ( 3 for drilling rig, 1 for mud pump).
3. All-hydraulic-driven drill head.
4. Drill head with its maximum rotational speed reaching 1,130 RPM.
5. Suitable for BS, NS and HS rod, and rod holder is designed.
6. 1.8m feed stroke.
7. 3-meter pulling capability.
8. Rotary safety protection device is designed with this onshore land drilling rig.
9. Maximum drilling depth of 400m in NS size.
After-sales Service
Our professional engineer team is globally available, 24/7.
Note
Our onshore drilling machines are available with different mounting options and diesel or electric drive options. Please contact landy.industry20@gmail.com for more information.
Technical Specifications
|
Drilling Capacity
（for reference）
|
Diameter of Drill Rod |
Drilling Depth |
|
BS |
600m |
|
|
NS |
400m |
|
| HS | 200m | |
|
|
||
|
Hydraulic System |
Pressure |
18MPa |
|
Cooling |
Air Cooled |
|
|
|
||
|
Engine |
Model |
Kubota |
|
Rated Power |
24.5KW ×（3+1） |
|
|
Rotational Speed |
2,800rpm |
|
|
|
||
|
Drill Head |
Max. Torque |
800Nm |
|
Max. Rotation ,RPM |
1,130rpm |
|
|
Feed Stroke |
1,800mm |
|
|
Max. Inside Diameter |
97mm |
|
|
Max. Pull |
70KN |
|
|
Max. Push |
35KN |
|
|
|
||
|
Main Winch |
Max. Pull |
30KN |
|
Pulling Speed |
26m/min |
|
|
Rope Diameter |
14mm |
|
|
Rope Length |
30m |
|
|
|
||
|
Wireline Winch |
Max. Pull |
11KN（bare drum） |
|
Pulling Speed |
110m/min（bare drum） |
|
|
Rope Diameter |
5mm |
|
|
Rope Length |
500m |
|
|
Mast |
Length |
6.2m |
|
Drilling Angle |
45°-90° |
|
|
|
||
|
Foot Clamp |
Drill Rod |
BS, NS, HS,PS |
|
|
||
|
Mud Pump |
|
|
|
|
||
|
Max Unit Weight After Dismounting |
200kg(Main Winch is 230kg) |
|
