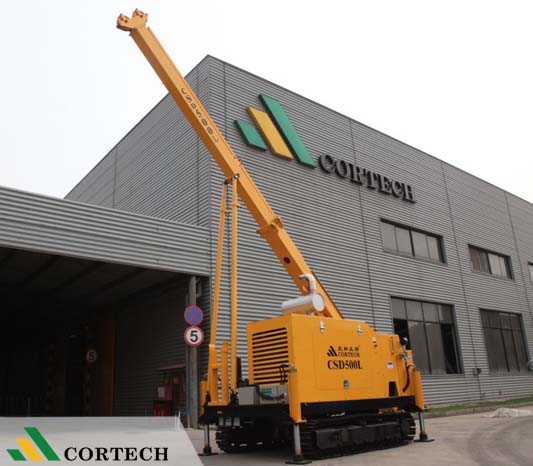

Features
1. Crawler track mounted.
2. Applicable for drilling in narrow space.
3. Mast dump.
4. Equipped with main winch, wireline winch, mud pump and mud mixer.
5. The floating device of drill head can protect the rod threads during make up and break out.
6. Equipped with foot clamp which can be hydraulically open and closed.
7. Accurate control of feed pressure.
8. Premium hydraulics from Europe / US.
After-sales Service
Our professional engineer team is globally available, 24/7.
Note
Our drilling rigs are available with different mounting options and diesel or electric drive options. Please contact landy.industry20@gmail.com for more information.
Technical Specifications
|
Drilling Capacity （for reference） |
Diameter of Drill Rod |
Drilling Depth |
|
BS |
650m |
|
|
NS |
500m |
|
| HS | 300m | |
|
|
||
|
Hydraulic System |
Rated Pressure |
24MPa |
|
Cooling |
Air Cooled |
|
|
|
||
|
Engine |
Model |
Cummins 4BTA3.9-C110 |
|
Rated Power |
82KW |
|
|
Rotational Speed |
2,200rpm |
|
|
|
||
|
Drill Head |
Max. Torque |
1,400Nm |
|
Max. Rotation |
1,000rpm |
|
|
Feed Stroke |
1,800mm |
|
|
Max. Inside Diameter |
97mm |
|
|
Max. Pull |
70KN |
|
|
Max. Push |
35KN |
|
|
|
||
|
Main Winch |
Max. Pull |
40KN |
|
Pulling Speed |
35m/min |
|
|
Rope Diameter |
14mm |
|
|
Rope Length |
30m |
|
|
|
||
|
Wireline Winch |
Max. Pull |
10KN（bare drum） |
|
Pulling Speed |
110m/min（bare drum） |
|
|
Rope Diameter |
5mm |
|
|
Rope Length |
600m |
|
|
Mast |
Length |
8.6m |
|
Drilling Angle |
45°-90° |
|
| Dump Length | 900mm | |
|
|
||
|
Foot Clamp |
Drill Rod |
BS, NS, HS,PS |
|
|
||
|
Travelling Capacity |
Max. Permissible Gradient |
20° |
|
|
Max. Travelling Speed |
1.7km/h |
|
|
||
| Transport Dimensions | L x W x H | 4,570 x 2,000 x 2,425mm |
|
|
||
| Gross Weight | 5700kg |
|
