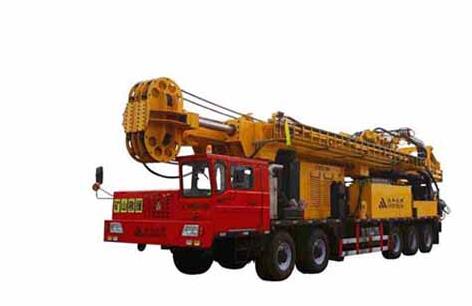

CMD100 Multipurpose oil&gas CBM Drilling Rig

CMD 100 is API certified, hydraulic drilling rig that is specifically designed for vertical or directional drilling operations in shallow oil & gas, coal-bed methane(CBM, CSG) and geothermal, with air, mud or foam drilling techniques. This energy drilling rig can also be used for fast mine rescue and core drilling.

Advantages
1. API certified;
2. Truck mounted drilling rig, compact and rugged design with high mobility.
3. Hydraulic top drive provides high torque and infinitely variable speed control.
4. Hydraulic feed system offers precise control of weight on bit (WOB) and rate of penetration (ROP).
5. Pull-down drilling function negates the use of weighted drill string in top hole and directional drilling operations.
6. Tilting top drive provides fast, efficient pipe handling by picking up and laying out drill pipe horizontally.
7. No cranes are needed in the setup of the rig due to the hydraulic self-erecting mast.


Features
1. 6 ×10 twin steer carrier able to access remote and harsh terrains.
2. Hydraulic drilling system that provides infinitely variable top drive rotation from 0-300 rpm. Precise WOB and feed control as well as pull down functions.
3. The top drive of this geothermal drill rig is fitted with two-speed radial piston motors that produce up to 27,500 Nm of torque ideal for large diameter wells. CMD100 also has an advantage over our competitors of having a maximum rotational speed of 300rpm ideal for core drilling.
4. The top drive of this hydraulic drilling rig can be tilted to 80° for effective pipe handling and tripping.
5. The top drive is fitted with a floating spindle with travelling distance of 102mm to help prevent thread damage to the drill pipe.
6. The top drive spindle has a disc brake system to allow for precise control of directional drilling operations.
7. The mast is telescopic with 15.2-meter feed stroke, allowing for the use of range III drill pipes and casings.
8. Drilling manifolds are offered to allow air drilling (reverse circulation and RAB drilling) and mud rotary drilling.
9. The large internal diameter of the top drive spindle (105mm) allows for the running of drilling tools trough the top.

After-sales Service
Our professional engineer team is globally available, 24/7.

Note
Choose the correct capacity;
BOP is optional;
Pipe handler is optional.

Technical Specifications

Feed system
Max. Pull	100t
Max. Push	20t
Slipbox
Max. Hollow	800mm
Control Panel to Ground, Max.	2.08m
Top Drive
Rotational Speed	0-100rpm(low grea); 0-300rpm(high gear)
Output Torque	27,500Nm, 0-100rpm; 9,700Nm, 0-300rpm
Through-hole Diameter	115mm
Mast
Mast Length	21m (after telescopic) 13.4m (before telescopic)
Feed Stroke	15.2m
Rod & Casing	III (38” - 45”)
Number of Jacks	6
Dimensions
Gross weight	60t
Dimensions (L × W × H)	14.56m × 2.95m × 4.35m
Power system
Model	Cummins KTA19-P750
Power	750hp@1800rpm
Displacement	19L
Winch
Max. Pull	5.5T
Winch Cable	35m × 16mm
Air / Mud line
Pressure	20.6MPa
Tube Bore	3"
Mud Pump	Optional
Air Compressor	Optional
