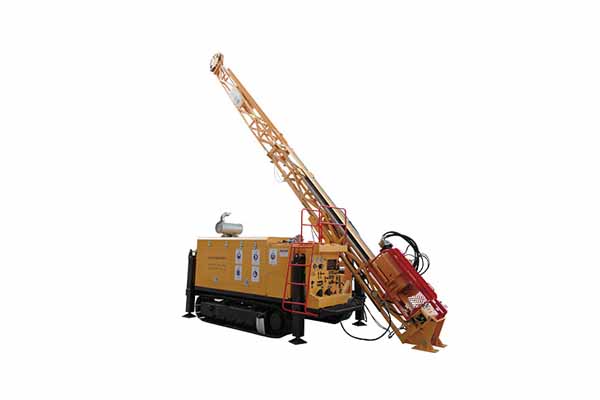

CSD 1300G/1300L Full Hydraulic Core Drilling Rig

Features
1. 4 speed transmission.
2. Large chuck with diameter up to 117mm.
3. Stroke of drill head is 3.5m, suitable for 3-meter-long rods.
4. Drill head side slide to stay away from the center.
5. Foldable mast minimizes transport dimensions.
6. Independent hydraulic leveling jacks.
7. Accurate control of feed pressure.
8. Drill head floating protects the rod threads.
9. Real time display of drilling data on the control panel.
10. Mud flow controlled at control panel.
11. Premium hydraulics from Europe / US.
12. Powerful US main hoist.
13. Wireline winch of this track mounted diamond core drilling rig is designed with automatic rope spooler.



After-sales Service
Our professional engineer team is globally available, 24/7.

Note
Our drilling rigs are available with different mounting options and diesel or electric drive options. Please contact landy.industry20@gmail.com for more information.
Technical Specifications

	CSD1300G	CSD1300L
Drilling Capacity (for reference)
Diameter of Drill Rod	BS, NS, HS, PS	BS, NS, HS, PS
Drilling Depth	1,300m 1,000m 700m 400m	1,300m 1,000m 700m 400m
Hydraulic System
Rated Pressure	26MPa	26MPa
Cooling	Air Cooled	Air Cooled
Engine
Model	Cummins 6BTA5.9-C180	Cummins 6BTA5.9-C180
Type	Turbo Charged	Turbo Charged
Power	132kW	132kW
RPM	2,500rpm	2,500rpm
Drill Head
Max. Torque	4,257Nm	4,257Nm
Max. Rotation	1,182rpm	1,182rpm
Feed Stroke	3,500mm	3,500mm
Max. Inside Diameter	117mm	117mm
Pull/Push	127KN/50KN	127KN/50KN
Main Winch
Max. Pull	68KN	68KN (bare drum)
Pulling Speed	28m/min (low), 65m/min (high)	28m/min
Rope Diameter	16mm	16mm
Rope Length	30m	30m
Wireline Winch
Max. Pull	11KN (bare drum)	11KN (bare drum)
Pulling Speed	120m/min (bare drum)	120m/min
Rope Diameter	6.6mm	6.6mm
Rope Length	1,000m	1,000m
Mast
Length	10m	10m
Drilling Angle	45 to 90 degrees	45 to 90 degrees
Dump Length	1.4m	1.1m
Foot Clamp
Drill Rod	BS, NS, HS, PS	BS, NS, HS, PS
Travelling Capacity
Max. Permissible Gradient	30°	30°
Max. Travelling Speed	2km/h	2km/h
Transport Dimensions
L × W × H	5,430 × 2,300 × 2,600mm	5,100 × 2,350 × 2,600mm
Weight
Gross Weight	10.3t	8.5t
